Series 30-UC

Universal Connector Bellows Traps

An all stainless steel bellows trap that drops in as an in-line replacement wherever universal connectors are installed in the piping system.

Max pressure: 300 psi (21 bar)
Max temperature: 425 °F (218 °C)
Body rating: ANSI Class 300
Fits: Universal connectors

Request a quote

PT Series 30-UC universal connector bellows trap

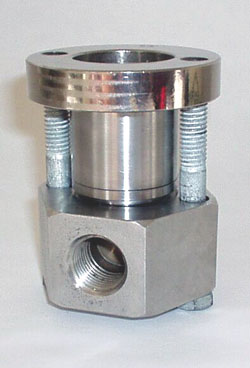

PT Series 30-UC trap installed in a universal connector

Applications

Drip, tracing, process and heating applications where universal connectors are in the piping system.

Operating principle

A welded stainless steel bellows senses the trap inlet pressure and temperature and controls the condensate discharge, following the saturating steam curve closely within 10 °F.

Design features

Excellent thermal efficiency
Fail-open
Resistance to corrosion and hydraulic shocks
Self-draining and freeze-proof
Venting of air and non-condensable gases
Excellent back pressure capability
Fast response to temperature change
Close following of saturation line
Compact and light weight; easy installation
All stainless steel trap
3-year product warranty

Capacities and seat orifices

Capacity chart: trap flow rate versus inlet pressure — Capacities measured at near steam temperature.

Dimensions and weight

1.5" outside diameter by 1.6" long. 0.44 lb.
