Series 46
Bimetal Steam Traps
A rugged all stainless steel bimetal trap that discharges subcooled condensate, handles dirt well and tolerates superheat, for tracing and drip service.
- Max pressure
- 300 psi (21 bar)
- Max temperature
- 750 °F (400 °C)
- Body rating
- ANSI Class 300
- Sizes
- 1⁄4" – 1" NPT
Applications
Tracing or drip applications with condensate discharge to atmosphere or to condensate return systems.
Operating principle
A series of bimetal discs senses the trap inlet temperature and pressure and controls the discharge temperature of condensate at around 50 °F (28 °C) below the saturation temperature of the inlet steam.
Design features
- Excellent thermal efficiency
- Excellent dirt handling capability
- Fail-open
- Resistance to corrosion and hydraulic shocks
- Self-draining and freeze-proof
- Venting of air and non-condensable gases
- Superheating capability
- Compact and light weight; easy installation
- All stainless steel trap
- Built-in check valve

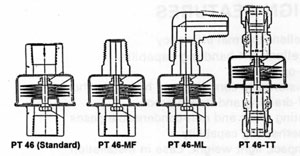

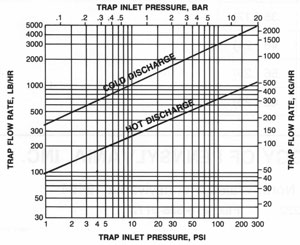

Capacities and seat orifices

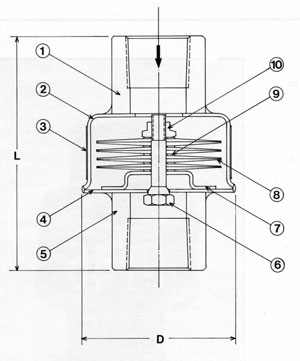

Parts and materials
| Item | Part | Material |
|---|---|---|
| 1 | Inlet fitting | Stainless steel |
| 2 | Body housing | Stainless steel |
| 3 | Name plate | Stainless steel |
| 4 | Body plate | Stainless steel |
| 5 | Outlet fitting | Stainless steel |
| 6 | Valve | Stainless steel |
| 7 | Mounting plate | Stainless steel |
| 8 | Bimetal disc | Corrosion resistant bimetal |
| 9 | Washer | Stainless steel |
| 10 | Lock nut |
Dimensions and weights
| End connectionin (DN) | “D” Øin (mm) | “L”in (mm) | Weightlb (kg) |
|---|---|---|---|
| 1⁄4 (6) | 1 13⁄16 (46) | 2 1⁄4 (57) | 0.34 (0.15) |
| 3⁄8 (10) | 1 13⁄16 (46) | 2 5⁄16 (59) | 0.38 (0.17) |
| 1⁄2 (15) | 1 13⁄16 (46) | 2 9⁄16 (65) | 0.46 (0.21) |
| 3⁄4 (20) | 1 13⁄16 (46) | 2 9⁄16 (65) | 0.56 (0.25) |
| 1 (25) | 1 13⁄16 (46) | 2 9⁄16 (65) | 0.62 (0.28) |
Installation
Install trap vertically downward with a strainer at the trap inlet for optimum operation.
